PHS10 Rod end Spherical Plain Bearings

Product Description

Type	Radial spherical plain bearings
items	PHS10
Belong	Plain Bearings

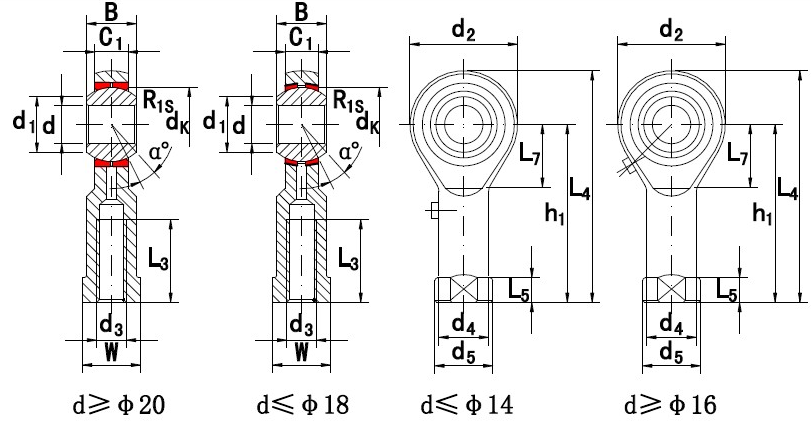

PHS 10 size:
d	10 mm
L4	56 mm
L5	6,5 mm
dL	19 mm
L3	21 mm
d1	12,9 mm
d2	26 mm
d3	15 mm
dk	19,050 / mm
h1	43 mm
r1 min.	0,2 mm
B	14 mm
C1	10,5 mm
W	17 mm
Thread (G)	M10×1,5
Weight	0,072 Kg
Basic dynamic load rating (C)	9,81 kN
Basic static load rating (C0)	13,3 kN
