Model: LM…UU UUAJ UUOP Linear Motion Bearings
Brand: MBY
Quantity:

LME…UU / UUAJ / UUOP Linear Motion Bearings

Product Description
MBY Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.
As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small.
By ball’s rotating with a quite small friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine, materialization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.

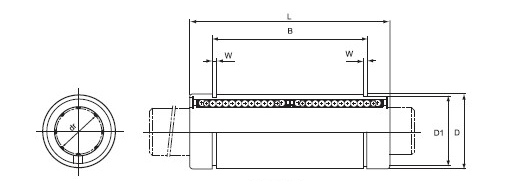

1
Model No. Number of ball rows Main dimensions Basic load rating Mass
Closed Type Clearance adjustment type Open type dr D L B W D1 h h1 CO  g
kgf kgf
LME 12UU LME 12UUAJ - 4 12 22 32 22.9 1.3 21 1.5 - 52 79 41
LME 16UU LME 16UUAJ LME 16UUOP 5 16 26 36 24.9 1.3 24.9 1.5 10 59 91 57
LME 20UU LME 20UUAJ LME 20UUOP 5 20 32 45 31.5 1.6 30.3 2 10 88 140 91
LME 25UU LME 25UUAJ LME 25UUOP 6 25 40 58 44.1 1.85 37.5 2 12.5 100 160 215
LME 30UU LME 30UUAJ LME 30UUOP 6 30 47 68 52.1 1.85 44.5 2 12.5 160 280 325
LME 40UU LME 40UUAJ LME 40UUOP 6 40 62 80 60.6 2.15 59 3 16.8 220 400 705
LME 50UU LME 50UUAJ LME 50UUOP 6 50 75 100 77.6 2.65 72 3 21 390 810 1130
LME 5UU LME 5UUAJ - 4 5 12 22 14.5 1.1 11.5 1 - 21 27 12
LME 60UU LME 60UUAJ LME 60UUOP 6 60 90 125 101.7 3.15 86.5 3 27.2 480 1020 2220
LME 8UU LME 8UUAJ - 4 8 16 25 16.5 1.1 15.2 1 - 27 41 20
