Model: XRE50025
Brand: MBY
Quantity:

Cross Roller Bearing XRE50025

Product Description

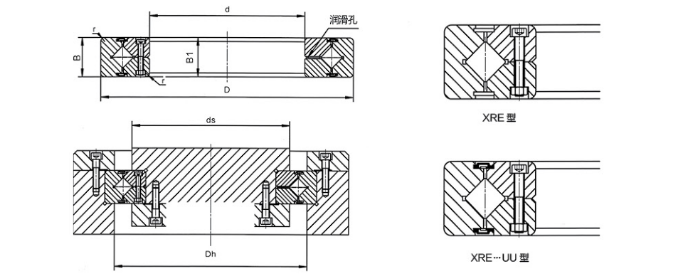

XRE
Type Dimension(mm) Rated Load Weight Releated type
ID OD B Roller pitch circle diameter shaft shoulder dimension Radial(KN)
d D B Dpw ds Dh C Co Kg THK
XRE50025 500 550 25 526.6 514 534 65.5 201 7.3 RE50025
XRE50040 600 40 548.8 526 572 239 607 26 RE50040
XRE50050 625 50 561.6 536 587 267 653 41.7 RE50050
