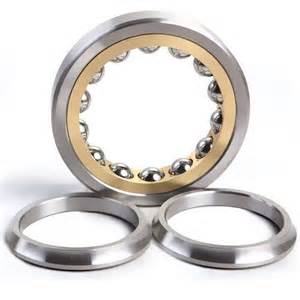

6314BI Bearings

Product Description

MBY® offers comprehensive ranges of angular contact ball bearings, which are available in:
–      Single row and double row
–      Open and sealed types
–      Contact angle of 15, 30 or 40 degree
–      Chrome steel, ceramic or hybrid materials
–      Polyamide, steel and brass cage assemblies

Note：Swipe left or right to view the complete table!

Bearing Code	6314BI
d	70
D	150
B	35
r(min)	2.1
Cr (KN)	184
Cor (KN)	165
Limiting Speed Grease	3600
Limiting Speed Oil	4900
a (mm)	77
da (min)	82
Da (Max)	138
ra (Max)	2
Mass (KG)	3.25
