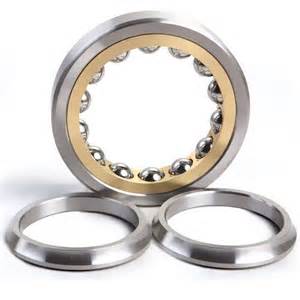

6313BI Bearings

Product Description

MBY® offers comprehensive ranges of angular contact ball bearings, which are available in:
–      Single row and double row
–      Open and sealed types
–      Contact angle of 15, 30 or 40 degree
–      Chrome steel, ceramic or hybrid materials
–      Polyamide, steel and brass cage assemblies

Note：Swipe left or right to view the complete table!

Bearing Code	6313BI
d	65
D	140
B	33
r(min)	2.1
Cr (KN)	164
Cor (KN)	145
Limiting Speed Grease	3800
Limiting Speed Oil	5300
a (mm)	72.1
da (min)	77
Da (Max)	128
ra (Max)	2
Mass (KG)	2.36
