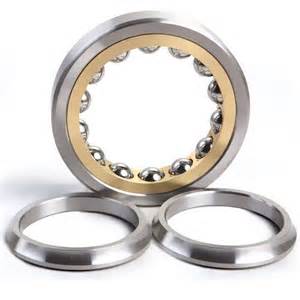

6218BI Bearings

Product Description

MBY® offers comprehensive ranges of angular contact ball bearings, which are available in:
–      Single row and double row
–      Open and sealed types
–      Contact angle of 15, 30 or 40 degree
–      Chrome steel, ceramic or hybrid materials
–      Polyamide, steel and brass cage assemblies

Note：Swipe left or right to view the complete table!

Bearing Code	6218BI
d	90
D	160
B	30
r(min)	2
Cr (KN)	167
Cor (KN)	173
Limiting Speed Grease	3100
Limiting Speed Oil	4300
a (mm)	87.5
da (min)	100
Da (Max)	150
ra (Max)	2
Mass (KG)	2.77
