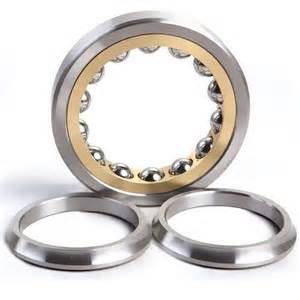

6217BI Bearings

Product Description

MBY® offers comprehensive ranges of angular contact ball bearings, which are available in:
–      Single row and double row
–      Open and sealed types
–      Contact angle of 15, 30 or 40 degree
–      Chrome steel, ceramic or hybrid materials
–      Polyamide, steel and brass cage assemblies

Note：Swipe left or right to view the complete table!

Bearing Code	6217BI
d	85
D	150
B	28
r(min)	2
Cr (KN)	146
Cor (KN)	150
Limiting Speed Grease	3400
Limiting Speed Oil	4600
a (mm)	82.3
da (min)	95
Da (Max)	140
ra (Max)	2
Mass (KG)	2.25
