Model: 54416
Brand: MBY
Availability:
Quantity:
Inquire Add to Basket

54416 bearing

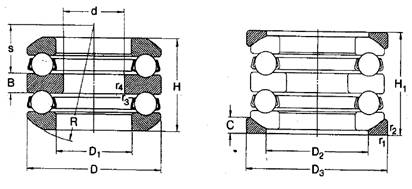

Product Description


d 65
D 170
H 128.5
r1/r2min 2.1
r3/r4min 1
D1 83
D2 125
D3 175
B 27
C 22
H1 140
R (mm) 125
S 30.5
Cr (KN) 270
Cor (KN) 620
Limiting Speed Grease 850
Limiting Speed Oil 1200
Bearing Code 54416
Housing Washer U416
da (Max) 80
Da (Max) 125
ra (Max) 2
rb (Max) 1
Mass (Approx) 14
Mass (Housing Washer) 1.4
