Model: 53228
Brand: MBY
Quantity:

53228 Thrust Ball Bearings

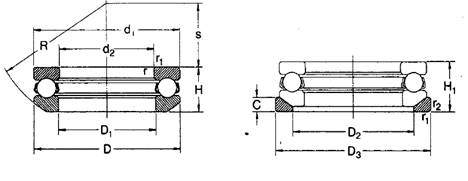

Product Description


d 140
D 200
H 48.6
r1/r2min 1.5
d1 197
D1 143
D2 170
D3 210
C 17
H1 55
R (mm) 160
S 87
Cr (KN) 190
Cor (KN) 570
Limiting Speed Grease 950
Limiting Speed Oil 1400
Bearing Code 53228
Housing Washer U228

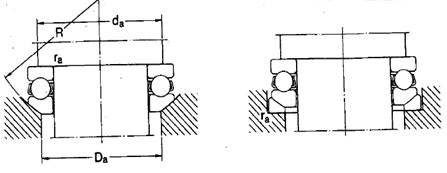

da (min) 176
Da (Max) 170
ra (Max) 1.5
Mass (Approx) 4.25
Mass (Housing Washer) 1.2
