Model: 30224/DF
Brand: MBY
Quantity:
Inquire Add to Basket

30224/DF

Product Description

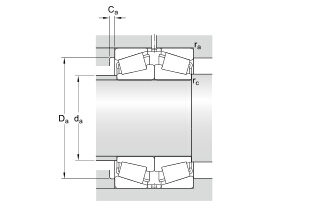

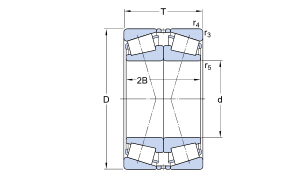

QQ截图20161219140358QQ截图20161219140411


Bearing Code 30224/DF
d 120
D 215
T 87
R3/R4min 2.5
R5min 1
Cr (KN) 583
Cor (KN) 915
Limiting Speed Grease 1300
Limiting Speed Oil 1800
da (Max) 141
Da (Min) 187
Da (Max) 203
Ca (Min) 6
ra (Max) 2
rb (Max) 0.8
e 0.43
Y1 1.6
Y2 2.3
Y0 1.6
Mass (KG) 13
