2209 EKTN9 Self-Aligning Ball Bearings

Product Description

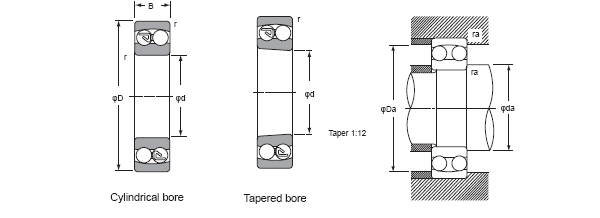

d	45
D	85
B	23
r(min)	1.1
Cr (KN)	23.3
Cor (KN)	8.15
Limiting Speed Grease	7000
Limiting Speed Oil	8500
Cylindrical Bore	2209
Tapered Bore	2209K
da (min)	51.5
Da (Max)	78.5
ra (Max)	1
e	0.3
Y1	2.09
Y2	3.23
Y0	2.19
Mass (Cylindrical Bore)	0.545
Mass (Tapered Bore)	0.533
