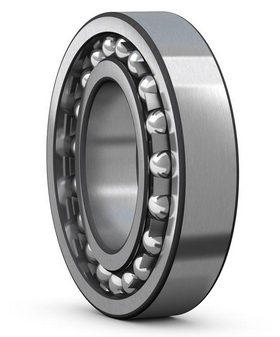

13030 Self-Aligning Ball Bearings

Product Description

d		150	mm
D		225	mm
B		56	mm
d1	≈	175.4	mm
D1	≈	203.7	mm
b		8.3	mm
K		4.5	mm
r1,2	min.	2.1	mm

da	min.	161	mm
Da	max.	214	mm
ra	max.	2	mm

Calculation data

Basic dynamic load rating	C		57.2	kN
Basic static load rating	C0		23.6	kN
Fatigue load limit	Pu		0.88	kN
Reference speed			5600	r/min
Limiting speed			3400	r/min
Permissible angular misalignment	α		3	°
Calculation factor	kr		0.02
Calculation factor	e		0.24
Calculation factor	Y0		2.8
Calculation factor	Y1		2.6
Calculation factor	Y2		4.1

Mass

Mass bearing

7.5

kg
