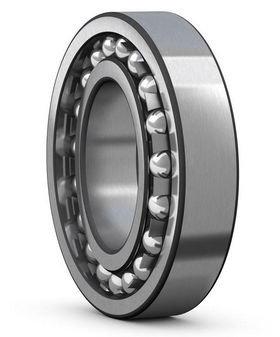

1226 M Self-Aligning Ball Bearings

Product Description

d		130	mm
D		230	mm
B		46	mm
d1	≈	163	mm
D1	≈	201.4	mm
C1		1.322	mm
r1,2	min.	3	mm

da	min.	144	mm
Da	max.	216	mm
ra	max.	3	mm

Calculation data

Basic dynamic load rating	C		127	kN
Basic static load rating	C0		58.5	kN
Fatigue load limit	Pu		2.24	kN
Reference speed			5600	r/min
Limiting speed			3600	r/min
Permissible angular misalignment	α		2.5	°
Calculation factor	kr		0.04
Calculation factor	e		0.19
Calculation factor	Y0		3.6
Calculation factor	Y1		3.3
Calculation factor	Y2		5.1

Mass

Mass bearing

8.3

kg
